ALU

The ALU is the chip responsible for doing all the math that happens in the CPU. The chips you have to implement are:

• HalfAdder - designed to add two bits
• FullAdder - designed to add three bits
• Add16 - designed to add two 16 bit numbers
• Inc16 - adds the constant 1 to a given numer
• ALU - the arithmetic logic unit, responsible for math operations

Vist this PDF for more hints and details: Download

I’ll cover the ALU specifically because its the most complex one of in this section.

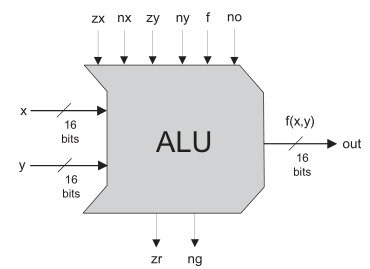

• Chip name: ALU
• Inputs:
• x[16], y[16], // Two 16-bit data inputs
• zx, // Zero the x input
• nx, // Negate the x input
• zy, // Zero the y input
• ny, // Negate the y input
• f, // Function code: 1 for Add, 0 for And
• no // Negate the out output
• Outputs:
• out[16], // 16-bit output
• zr, // True iff out=0
• ng // True iff out<0
• Function:
• if zx then x = 0 // 16-bit zero constant
• if nx then x = !x // Bit-wise negation
• if zy then y = 0 // 16-bit zero constant
• if ny then y = !y // Bit-wise negation
• if f then out = x + y // Integer 2’s complement addition
  else out = x & y // Bit-wise And
• if no then out = !out // Bit-wise negation
• if out=0 then zr = 1 else zr = 0 // 16-bit eq. comparison
• if out<0 then ng = 1 else ng = 0 // 16-bit neg. comparison

Function:

There are 6 control bits being:

zx, nx, zy, ny, f, no

Each row corresponds to a series of transformation on the x and y input that constitute and build up to an overall function noted in the out column.

Let’s elaborate any row with any input, and let’s start with the row that adds 1 to the x input.

1. x + 1

   increment x by 1

   zx	nx	zy	ny	f	no	out
   0	1	1	1	1	1	x+1

   Following the table from left to right(~>) sequentially,

   Say the inputs are:
   x: 0111 (7)
   y: 1011 (doesn’t really matter since we only want to increment x by 1 here.)

   zx is 0, so we don’t do anything
   nx is 1, so !x => 1000
   zy is 1, so y = 0000
   ny is 1 so y = 1111
   f is 1, so we do 2’s complement addition on the transformed inputs:

     1000
   + 1111
   _________
   1[0111]


   no is 1 so we negatate output:
   !(0111) = 1000 (8)
   and thus we have done x+1

1. y - x

   subtracts the input Y by the input X

   zx	nx	zy	ny	f	no	out
   0	0	0	1	1	1	y-x


   Let’s say our inputs are:
   x: 0100 (4)
   y: 1001 (9)

   We’re trying to do 9-4 = 5. Let’s see if we achieve this:
   zx is 0, so we don’t do anything
   nx is 0, so we don’t do anything
   zy is 0, so we don’t do anything
   ny is 1, so we negate !y = 0110
   f is 1, so we do 2’s complement addition on the transformed inputs:

     0100
   + 0110
   _________
     1010


   no is 1 so we negatate out above which will be 0101(5)!
   9 - 4 = 5 , so we are good

Try it yourself! Elaborate any row with random inputs you can come up with.
